Flexible Pilot-Scale Solutions for Research and Production
Overview

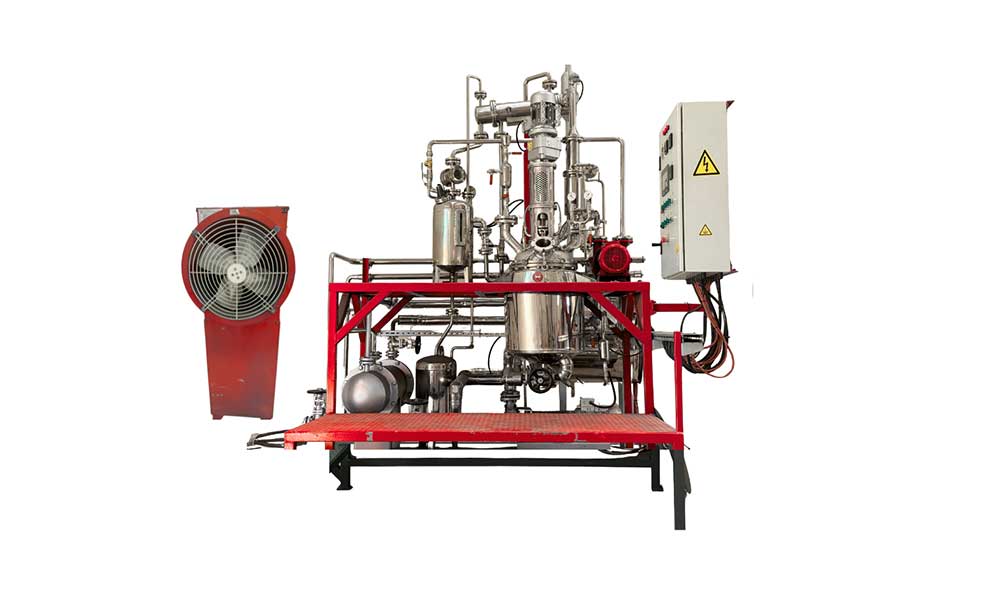

Atommek Universal Pilot Units are modular, versatile systems designed for pilot-scale research, testing, and small-scale production across multiple industries. These units allow for flexible process testing, optimization, and scale-up before full-scale industrial implementation.
Pilot units are ideal for:
- Testing new formulations or processes
- Process optimization and validation
- Scale-up studies for industrial production
Application Industries
- Pharmaceutical Industry
- Chemical Industry
- Food & Beverage Industry
- Polymer & Resin Industry
- Petrochemical Industry
Unit Types
Atommek Universal Pilot Units are highly modular and can be configured for different pilot-scale applications:
- Reaction Pilot Units: For testing chemical reactions at small scale.
- Evaporation Pilot Units: For thin film or other evaporation process tests.
- Blending & Mixing Pilot Units: Small-scale homogenization and blending.
- Filtration Pilot Units: Pilot-scale separation and filtration testing.
- Heating & Cooling Units: For thermal process control during pilot studies.
Units can be customized to meet the precise requirements of the process being tested.
Process
The Atommek Universal Pilot Unit process is designed for flexibility and adaptability:
- Feed Material Loading: Raw materials or formulations are introduced into the pilot system.
- Process Operation: The unit performs the desired process (reaction, evaporation, blending, etc.) under controlled conditions.
- Monitoring & Control: Automated sensors and PLC systems track temperature, pressure, flow rate, and other critical parameters.
- Sample Collection: Pilot-scale samples are collected for analysis, optimization, and validation.
- Process Adjustment: Parameters can be adjusted in real-time to optimize outcomes.
- Data Recording: Process data is recorded for scale-up and industrial application.
Features & Advantages
- Modular Design: Easily configurable for multiple process types.
- Flexible Operation: Supports a wide range of pilot-scale experiments.
- Process Monitoring: PLC control and sensor integration for precise operation.
- Data-Driven Optimization: Pilot data supports process scale-up and validation.
- High Safety Standards: Designed with safety features for pilot operation.
- Compact & Space-Saving: Ideal for laboratory and pilot plant environments.
Technical Specifications (Template Example)
| Parameter | Typical Range / Options |
|---|---|
| Unit Type | Reaction, Evaporation, Blending, Filtration, Thermal |
| Capacity | 1–100 L (pilot scale) |
| Motor Power | 0.5–10 kW |
| Speed Range | 10–200 rpm (adjustable) |
| Material | SS304, SS316, Glass-Lined, Carbon Steel |
| Operating Temperature | Ambient to 250 °C |
| Operating Pressure | 0.5–10 bar |
| Control System | Manual or automated PLC-based controls |
| Dimensions | Customizable per configuration |
Exact specifications are provided per project; contact Atommek for detailed datasheets.
Applications
| Industry | Typical Use |
|---|---|
| Pharmaceuticals | Pilot-scale formulation testing, process optimization |
| Chemical Industry | Reaction testing, solvent recovery, concentration studies |
| Food & Beverage | Small-scale blending, evaporation, and concentration trials |
| Polymers & Resins | Pilot mixing, polymerization, and resin testing |
| Petrochemical Industry | Small-scale reaction and process trials |
