AtomMek Side-Entry Mixers: Efficient Industrial Mixing for Large Tanks

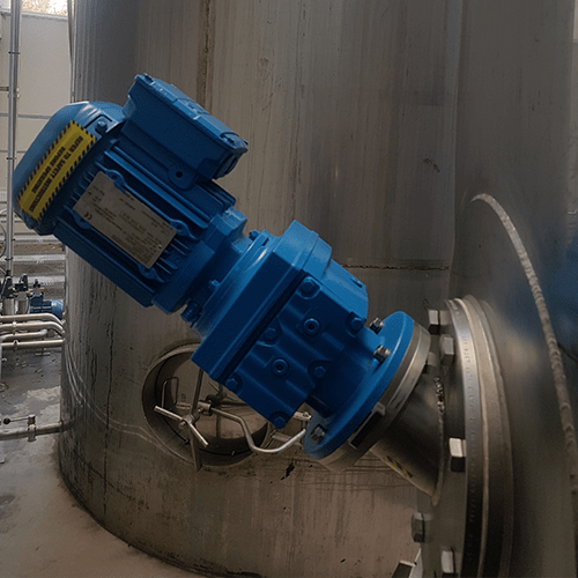

AtomMek Side-Entry Mixers are engineered for high-performance mixing in large-volume tanks. Installed laterally from the tank wall, these mixers offer superior blending, sediment prevention, and energy efficiency — without the need for costly internal baffles.
Why Choose AtomMek?
Designed for Efficiency Ideal for tanks where top-entry isn’t practical. Our impeller positioning ensures consistent performance while reducing energy and setup costs.
Lower Capital Cost Side-entry mixers eliminate the need for tank baffles and other accessories, saving you cost on vessel infrastructure.
Maintenance Without Downtime Thanks to a built-in shut-off device, you can maintain seals even when the tank is full, maximizing uptime.
Multi-Mixer Flexibility: Install one or multiple mixers based on your tank size and blending needs.
Key Features of AtomMek Side-Entry Mixers
Robust Industrial Build Made from Carbon Steel or Stainless Steel (AISI 304/316L) to handle aggressive chemicals and demanding processes.
Inline Gearbox + Mechanical Seal Features an inline helical gearbox and single mechanical seal with a shut-off system for full-tank maintenance.
High-efficiency impellers – such as hydrofoil or marine propellers—are designed to minimize energy consumption while maximizing blending uniformity
Compact Design, Big Impact Mounted from the sidewall, our mixers simplify installation and reduce structural requirements.
Typical Applications • Chemical Processing • Edible Oil Storage • Fermentation Tanks • Oil & Gas (BS&W control) • Flue Gas Desulfurization (FGD) • Wastewater Treatment Plants (WWTP)
Technical Specifications
| Motor Rating (kW) | Shaft Diameter (mm) | Operating Pressure | Shaft Length |
| 0.75 – 15 | 40 – 70 | Hydrostatic | Up to 1 meter |
Certifications All AtomMek Side Entry Mixers comply with international standards:
- ISO 9001
- CE Certification
- SGS Compliance (available upon request)
Need a Custom Solution? Our engineering team can tailor side-entry mixers to your exact process needs.
Contact Information
WhatsApp: +90 545 678 72 30
Email: [email protected]
