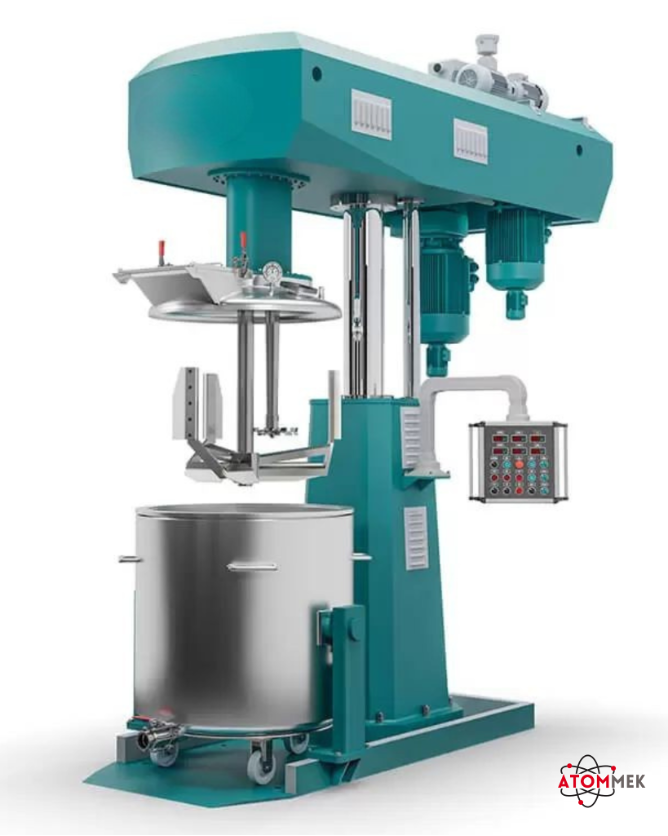

AtomMek Basket Mill Mixers
Precision Wet Grinding in One Compact System
AtomMek Basket Mill Mixers are the go-to solution for industries requiring fast, energy-efficient dispersing and ultra-fine wet grinding. Integrated into a single tank system, the basket mill eliminates the need for external pumps, pipes, and valves—ensuring clean operation with minimal product loss. Ideal for paints, inks, cosmetics, agrochemicals, and pharmaceuticals, our mixers consistently deliver narrow particle size distributions and high throughput.
Why Choose AtomMek Basket Mill Mixers?
Integrated Milling & Mixing
Basket mills combine high-speed dispersion and fine grinding in a single vessel, reducing processing time and operational complexity.
Ultra-Fine Results with No Bead Loss
Engineered with a fine discharge sieve and anti-reflux system, AtomMek Basket Mills retain grinding media while achieving sub-micron particle sizes.
Advanced Thermal Control
Dual cooling zones on both the grinding basket and container ensure optimal temperature regulation for heat-sensitive formulations.
Zero Waste, Easy Clean-Up
Self-contained design eliminates residual product and shortens batch changeovers. No external lines mean no dead zones.
Features at a Glance
High Energy Dispersion
- Efficient nano-grinding and fine dispersing
- Uniform results even in high-viscosity systems
Modular & Scalable
- Electrical or hydraulic lifting options
- Suitable for batch sizes from 2.5L to 2,000L
Precision & Flexibility
- Compatible with a wide range of grinding beads
- VFD-controlled speed adjustment for process optimization
Scalable for Every Stage of Production
- Lab Scale: R&D and pilot runs
- Mid-Scale: Custom batches and testing
- Full Production: High-volume commercial batches
Typical Applications
- High-gloss & solvent-based paints
- Cosmetic creams, foundations & emulsions
- Inkjet, flexo, and screen-printing inks
- Agrochemical suspension concentrates (SCs)
- Pharmaceutical dispersions and gels
- Food colorants and additives
Technical Specifications
| Model | Basket Volume (L) | Motor (kW) | Speed (RPM) | Batch Capacity (L) | Grinding Media (mm) | Lifting Method |
| EBM-0.75 | 0.3 | 0.75 | 2885 | 2.5–5 | 0.4–2.6 | Electrical |
| EBM-1.1 | 0.3 | 1.1 | 2885 | 2.5–8 | 0.4–2.6 | Electrical |
| EBM-2.2 | 0.8 | 2.2 | 2890 | 15–40 | 0.4–2.6 | Electrical |
| EBM-4 | 2.1 | 4 | 2950 | 50–100 | 0.4–2.6 | Electrical / Hydraulic |
| EBM-7.5 | 4.2 | 7.5 | 1480 | 100–200 | 0.4–2.6 | Hydraulic |
| EBM-11 | 10 | 11 | 1480 | 200–300 | 0.4–2.6 | Hydraulic |
| EBM-15 | 10 | 15 | 1480 | 250–350 | 0.4–2.6 | Hydraulic |
| EBM-18.5 | 16 | 18.5 | 1480 | 350–500 | 0.4–2.6 | Hydraulic |
| EBM-22 | 16 | 22 | 1480 | 400–600 | 0.4–2.6 | Hydraulic |
| EBM-30 | 23 | 30 | 1480 | 500–800 | 0.4–2.6 | Hydraulic |
| EBM-37 | 30 | 37 | 1480 | 600–1000 | 0.4–2.6 | Hydraulic |
| EBM-45 | 40 | 45 | 1480 | 800–1100 | 0.4–2.6 | Hydraulic |
| EBM-55 | 55 | 55 | 990 | 1000–1400 | 0.4–2.6 | Hydraulic |
| EBM-75 | 75 | 75 | 800 | 1500–2000 | 0.4–2.6 | Hydraulic |
Certifications & Quality Assurance
- ISO 9001
- CE Certification
- SGS Testing Available
